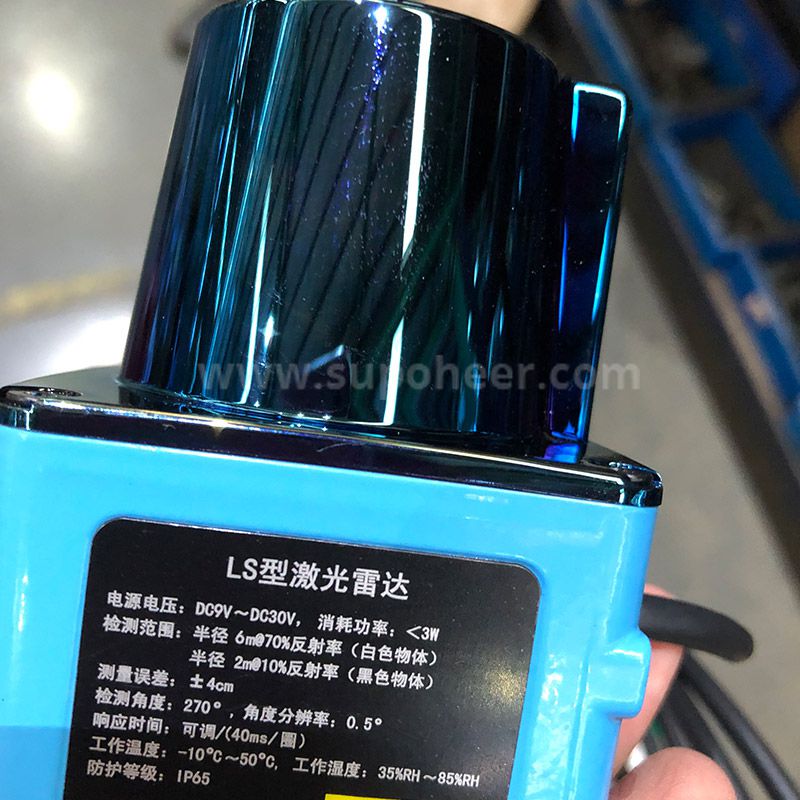

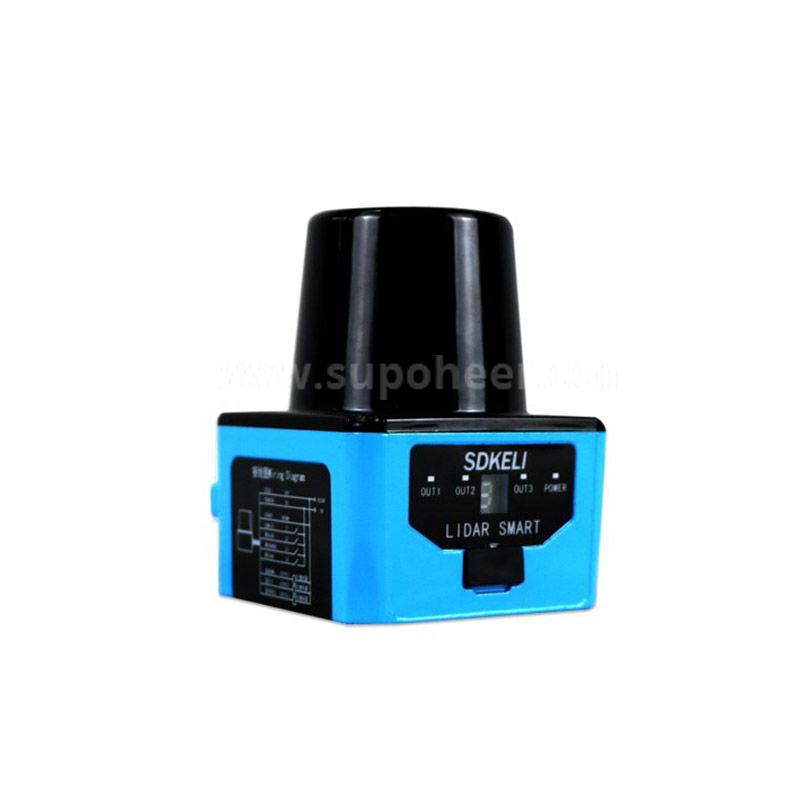

LS Series Lidar

The LS series lidar can realize two-dimensional area detection and contour scanning with a range of 270° and a radius of 20 meters. It is compact, flexible, accurate, reliable, and cost-effective. It is an ideal choice for mobile robots for obstacle avoidance and navigation.

Features

1. Based on pulsed laser ranging technology, the energy value of pulsed light is 1000 times higher than that of a continuous and constant light source, ensuring the stability and reliability of the measurement. At the same time, combined with nanosecond narrow pulse technology to ensure that a class of laser products are safe for human eyes

2. The scanning speed is super fast, it can measure 25000 times in 1 second, and the scanning time of single circle is 40ms

3. Industrial design, stable and reliable. IP65, special temperature drift error elimination design, professional EMC design and rigorous testing, ambient light and shock vibration testing

4. The window is detachable design, which is convenient for maintenance, reduces maintenance cost, and improves product service life

5. Up to 16 groups of definable detection areas, which can be defined as arbitrarily complex and irregular shapes according to user needs
