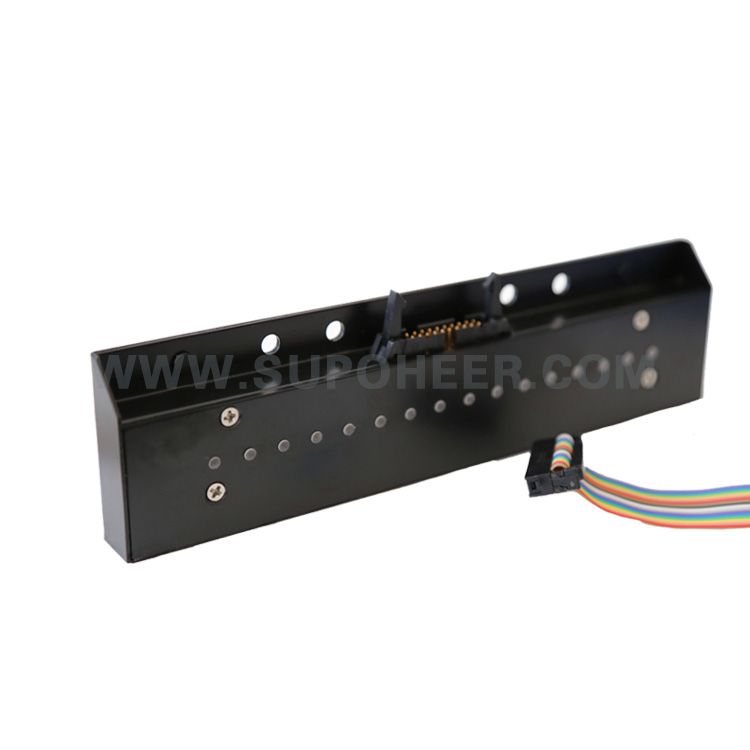

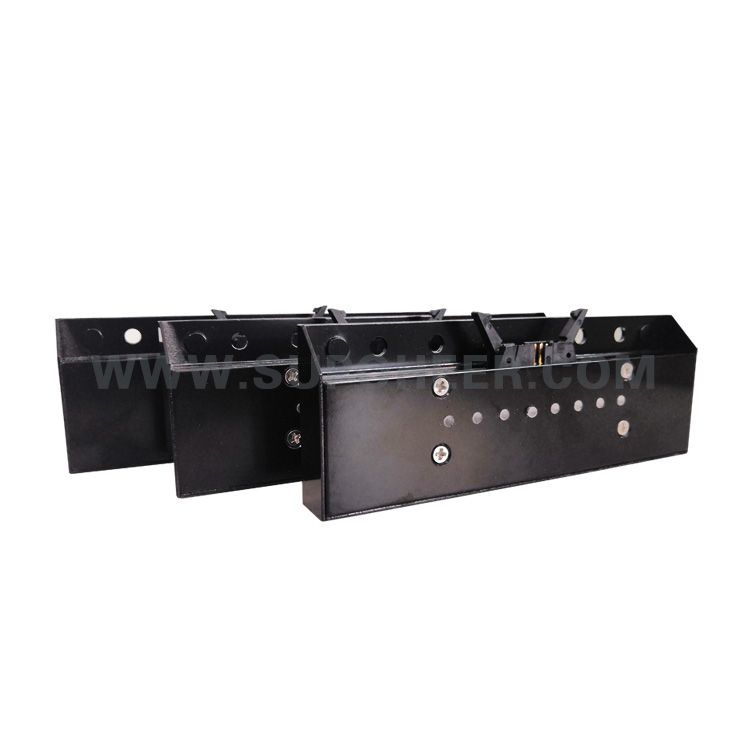

Professional Manufacturer of Related AGV Products
Thank you very much for using the magnetic navigation sensor series products.
Before use, please read this manual carefully to use this product correctly and reasonably.
Precaution
The access voltage must be within the rated voltage range； Prevent impact, water erosion, and wrong wiring;
There can be no other magnetic objects in the detection range;
When working, the sensor is perpendicular to the magnetic object, and the inclination angle of each direction does not exceed ±10°;
Clean the sensor regularly to prevent the adhesion of magnetic metal dust;
Product Specification
| Model | YF-9006 | YF-9006P | YF-9016 | YF-9016P |
| Number of sensing points | 8 | 8 | 16 | 16 |
| Sensing particle spacing | 10mm | 10mm | 10mm | 10mm |
| Detection polarity | N | N | N | N |
| Output form | NPN Output | PNP Output | NPN Output | PNP Output |
Technical Data
Working voltage: 10~30V
Working current: 20mA~80mA (DC24V) Working humidity: 10~85% RH (non-condensing)
Working temperature: indoor -20～60℃ Storage temperature range: -40～+80℃ Circuit protection: with reverse polarity protection
Detection polarity: N pole detection accuracy: 1mm
Detection distance: 0~50mm Recommended installation height: 20mm Response time: <1ms (related to the baud rate)
Withstand voltage: DC45V Protection level: IP54 Shell material: hard aluminum alloy
Mechanical Dimensions

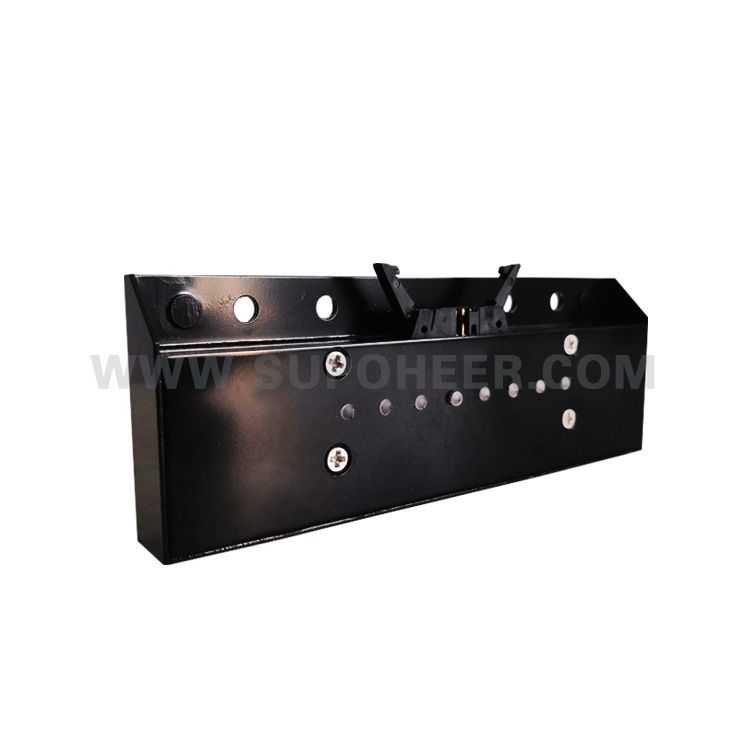

YF-9006/9006P

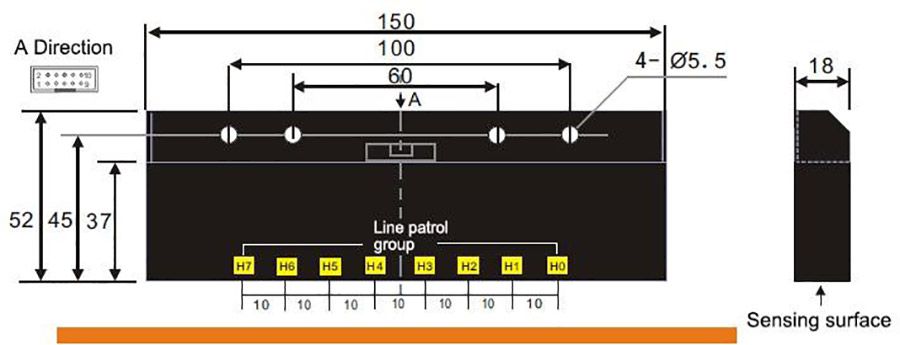

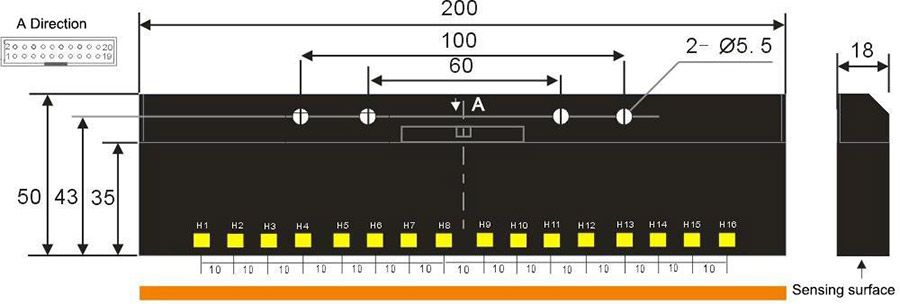

YF-9016/9016P

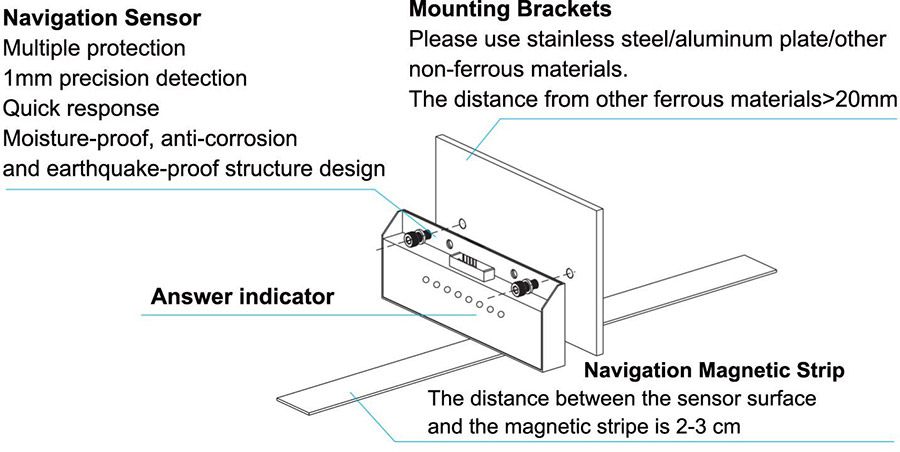

Installation Schematic
Features
| Feature | Imported components manufacturing work stable | Built-in temperature compensation circuit,small temperature drift | Corresponding speed less than 0.5ms | Silicone potting three-proof design |
| Working temperature, -20℃~60℃ | Close detection without blind spots | Long life design, unique remanence elimination | Accept Customized order |
