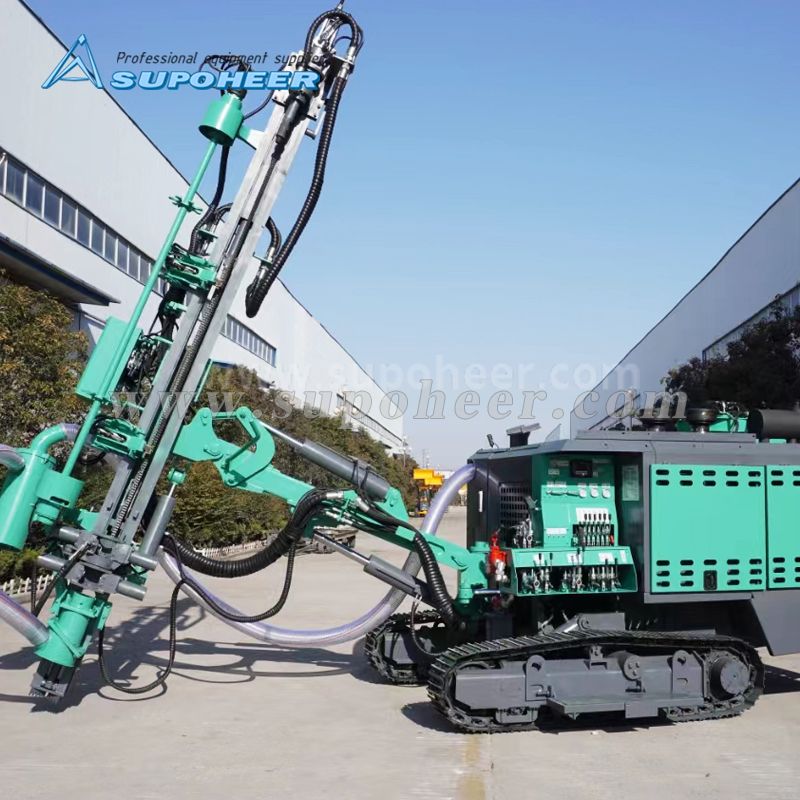

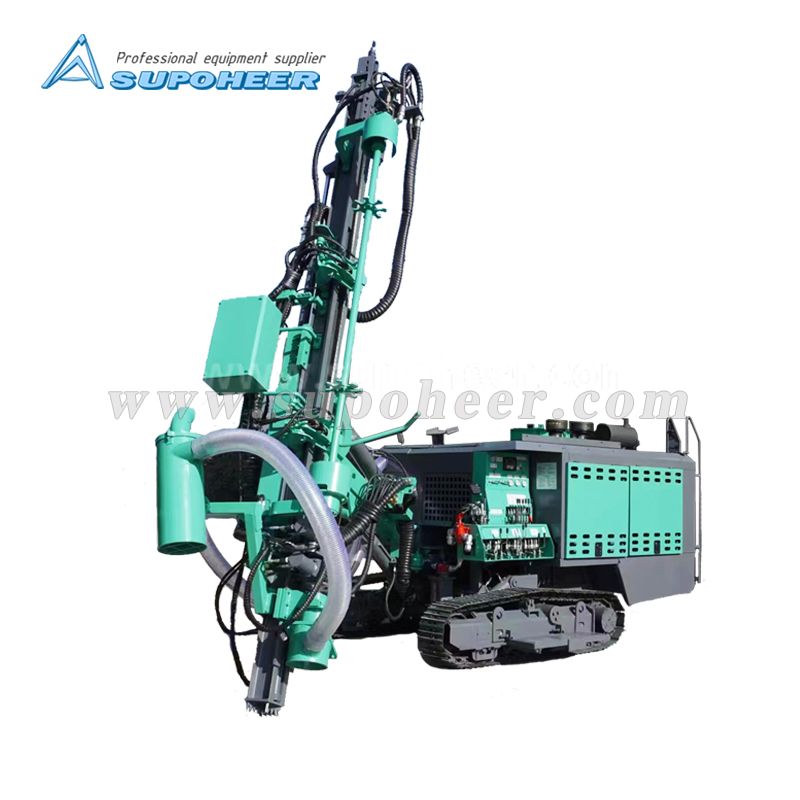

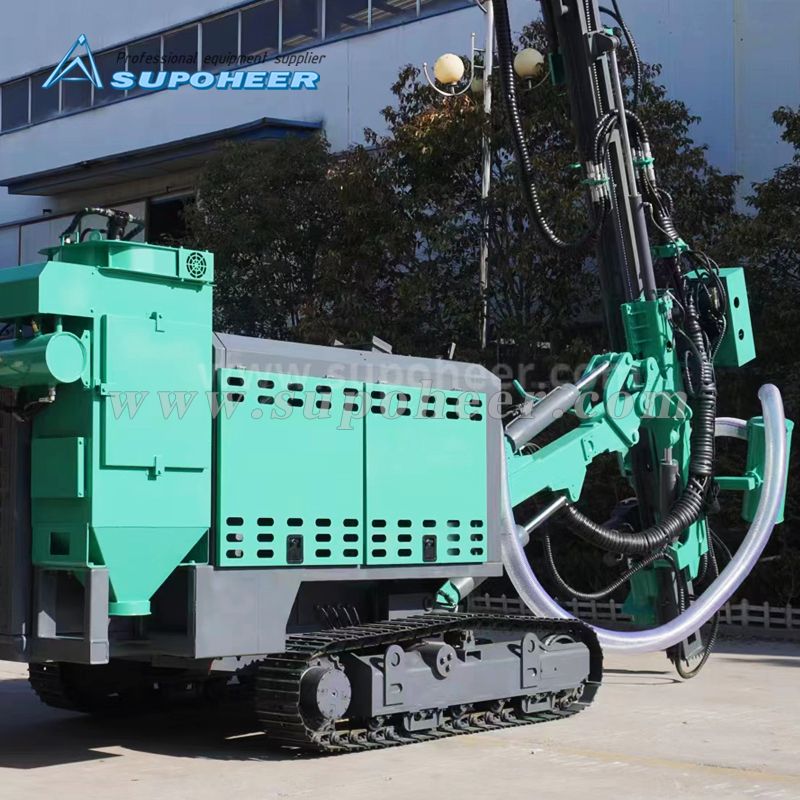

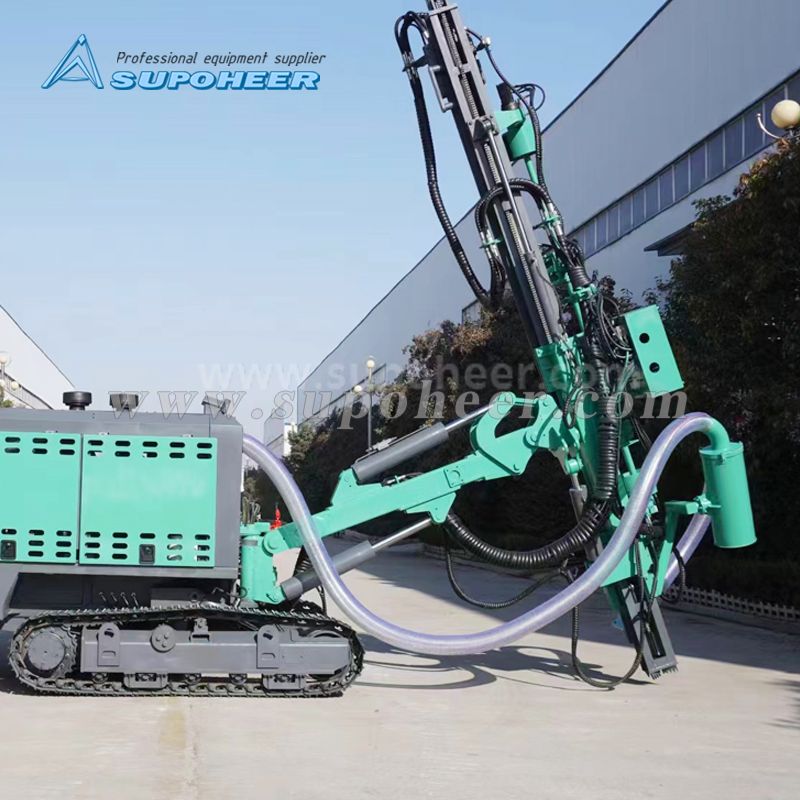

Crawler hydraulic down hole drilling rigs are mainly used for drilling blasting holes for hydropower projects, open pit mining, road construction and national defense projects. It is designed for hydropower construction and stone mining construction, realizing low level hole drilling in various postures, and also realizing vertical inclined drilling. The product performance is better, the feed cost is lower, the machine design is compact, the applicable space is small, the operation is more humanized.
| |||
项目Item | 单位Unit | 参数 | |
钻孔参数 | 钻孔直径 | mm | 90-127 |
钻孔深度 | m | 21 | |
钻杆规格 | mm | Φ60*3000 | |
钻杆数量 | / | 6+1 | |
换杆方式 | / | 自动 | |
冲击器规格 | inch | 3.5" | |
发动机 | 发动机型号 | / | YC6J220-T300 |
发动机额定功率/转速 | kW/rpm | 162/2200 | |
燃油箱容积 | L | 250 | |
空压机 | 机头制造厂 | / | 鲍斯BSC |
额定风量 | m³/min | 13 | |
最大风压 | bar | 19 | |
液压系统 | 主泵最大工作压力 | MPa | 25 |
主泵流量 | ml/r | 32 | |
副泵流量 | ml/r | 32+32 | |
回转装置 | 最大扭矩 | N.m | 1500 |
最大转速 | rpm | 135 | |
推进器 | 推进型式 | / | 油缸+链条 |
推进行程 | mm | 3700 | |
推进梁总长 | mm | 5500 | |
最大起拔力 | kN | 31 | |
最大进给力 | kN | 7.5 | |
最大推进速度 | m/s | 0.5 | |
集尘系统 | 过滤面积 | m² | 20 |
滤芯数量 | pcs | 20 | |
底盘 | 最大行走速度 | km/h | 3.2 |
最大爬坡角度 | ° | 25 | |
覆带板宽度 | mm | 300 | |
履带外宽 | mm | 2240 | |
履带总长 | mm | 2550 | |
调平角度 Pitch angle | ° | ±14º | |
运输状态钻机尺寸 (长*宽*高) | mm | 7480*2300*2750 | |
整机重量 (标配) | kg | 8500 | |
