Omnidirectional Piggyback Lift AGV

Automatic guided transport vehicle-introduction

Automated Guided Vehicle-AGV (Automated Guided Vehicle) refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices that can travel along a prescribed guide path, with safety protection and various transfer functions. AGV belongs to The category of Wheeled Mobile Robot (WMR-Wheeled Mobile Robot). A truck that does not require a driver in industrial applications, and uses a rechargeable battery as its power source. Generally, it can be controlled through a computer to control its travel route and behavior, or use an electromagnetic path-following system to set up its travel path. The electromagnetic track is glued to the floor, and the driverless follows the electromagnetic track. The message carries the transporter that moves and moves.

The automatic guided transport vehicle-the guidance method of AGV

1. Electromagnetic induction guidance. The electromagnetic field formed by the low-frequency guide cable and the electromagnetic sensing device are used to guide the operation of the unmanned guided vehicle.

2. Laser guidance. The laser scanner is used to identify several fixed signs set in its range of motion to determine its coordinate position, thereby guiding the operation of the AGV.

3. Magnet-gyro guidance. Use a special magnetic position sensor to detect small magnets installed on the ground, and then use gyroscope technology to continuously control the running direction of the unmanned truck.

Let robot smarter service for world.

AGV customized electric remote control rail transfer car is designed for transporting heavy cargoes or equipment from one bay to anther in factory, It can be used indoor or outdoor the fields include metallurgy,foundry, new factory construction and ship building and soon with different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

Product introduction

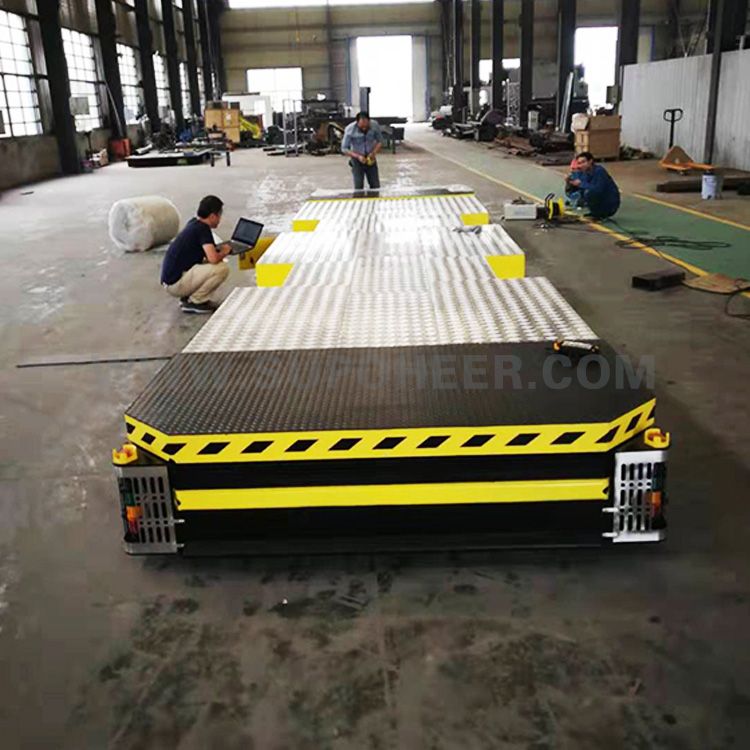

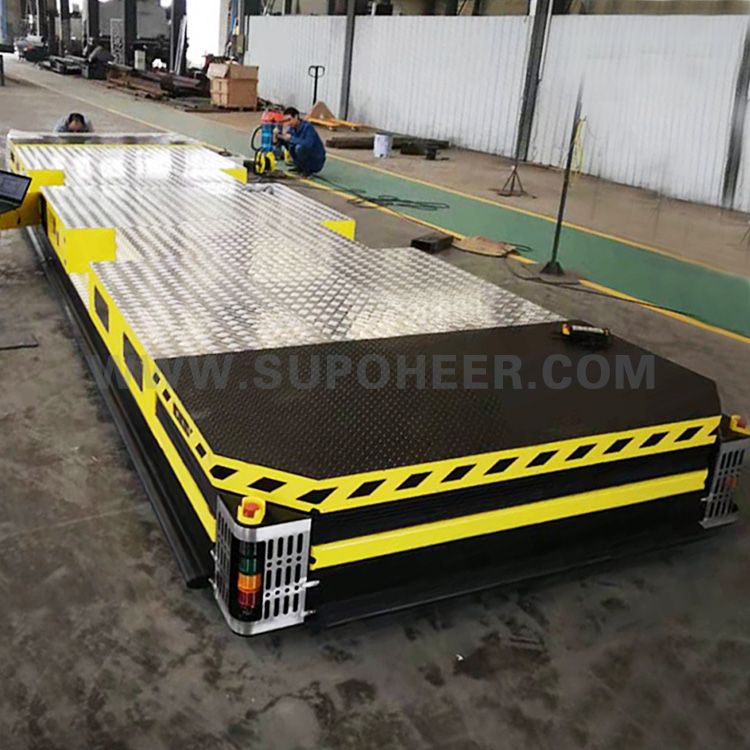

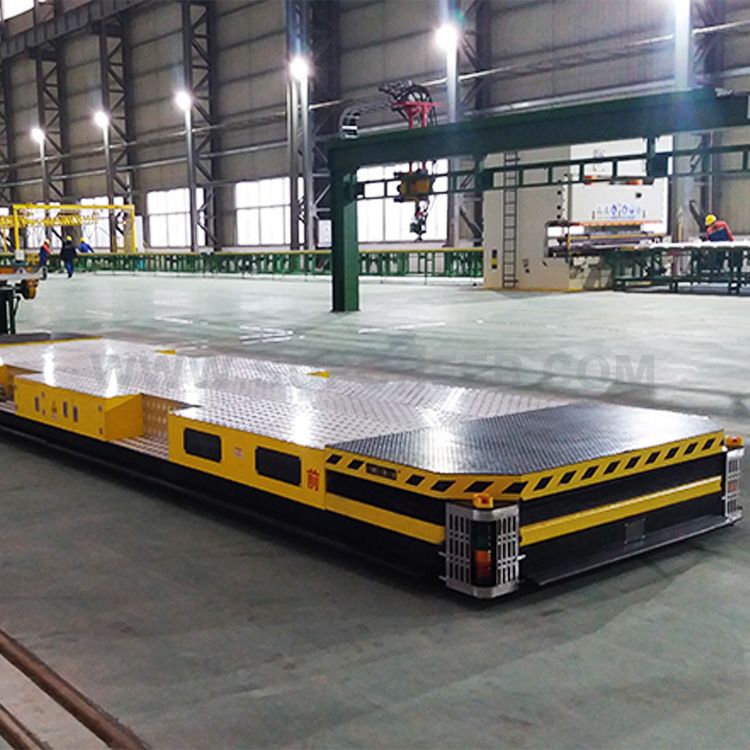

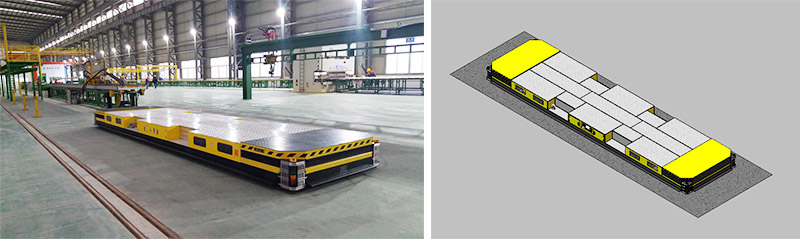

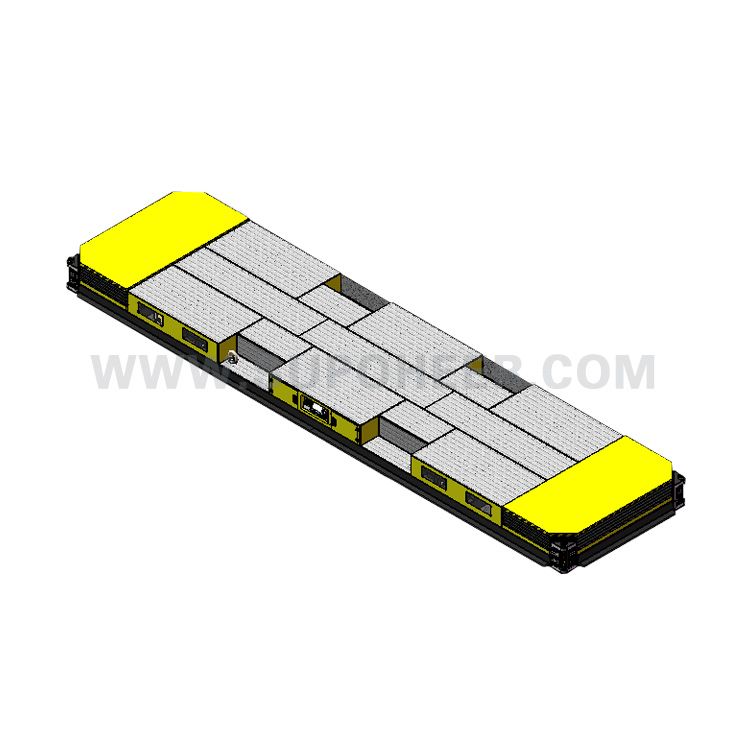

Omni-directional carrying lift AGV adopts a load-bearing body structure with a lifting mechanism, which can lift the material to a set height and transport it to the support plate, and requires less space for operation, and can be completed in a small space environment. The normal AGV can not complete the docking work, its 360-degree rotation function can meet the needs of the site to set different angles of operation requirements, effectively utilizing the on-site space. It is especially suitable for use in mechanical assembly and material handling where space is limited and items are heavy.

Features

1. Carrying a heavy load, can carry 3T~10T cargo

2. Omnidirectional walking, can complete various actions in a small space

3. Equipped with magnetic navigation landmarks for site docking

4. Safety protection is more in place, 270° obstacle avoidance security

Product Technical Parameters
